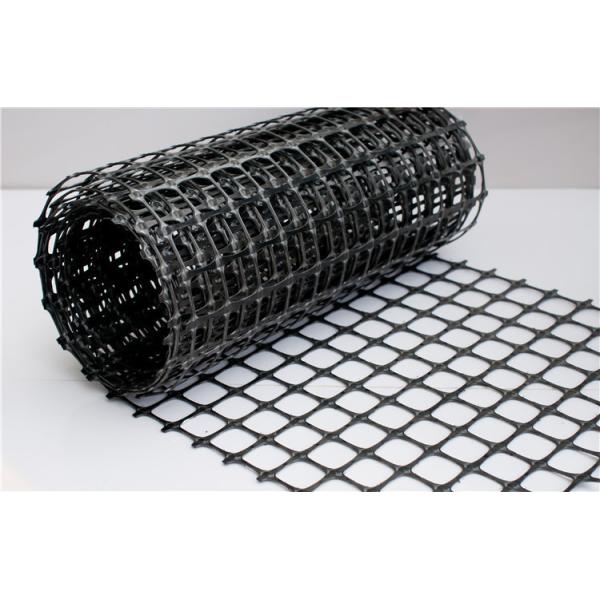

Geogrid Soil Stabilization High Strength Plastic Biaxial Geogrid For Car Parking
Description :
Biaxial plastic grid is made of high molecular polymer through extrusion, plate forming, punching process and then longitudinal and transverse stretching. This material has great tensile strength in both longitudinal and transverse directions. This structure can also provide an ideal interlocking system for more effective force bearing and diffusion in the soil, which is suitable for large-area permanent load-bearing foundation reinforcement.
During the manufacturing of biaxial plastic geogrid, the polymer polymer will rearrange and orient itself during the heating and stretching process, which strengthens the connection between molecular chains and achieves the purpose of improving its strength. Its elongation is only 10% to 15% of the original plate. If anti-aging materials such as carbon black are added to the geogrid, it can have better durability such as acid resistance, alkali resistance, corrosion resistance and anti-aging.
| Product Name | PP Biaxial Extruded Geogrid |
| Tensile Strength | 15/15 16/16 20/20 25/25 30/30 40/40 |
| Mesh Size | 38x38, 50X50mm |
| Roll Width | 3.95 Or 5.95 m |
| Roll Length | 50 Or 75 m |
| Standard | CE, ASTM, ISO |
Application:
Slope Protecting
Water Conservancy Dam
Plastic Biaxial Geogrid Technicail Specification :
| Product Spec. | Ultimate Tensile Strength MD/CD kN/m ≥ | Tensile strength @ 2% MD/CD kN/m ≥ | Tensile strength @ 5% MD/CD kN/m ≥ | Elongation at ultimate tensile strength MD/CD % ≤ |
| TGSG1515 | 15 | 5 | 7 | 13.0/15.0 |
| TGSG2020 | 20 | 7 | 14 |
| TGSG2525 | 25 | 9 | 17 |
| TGSG3030 | 30 | 10.5 | 21 |
| TGSG3535 | 35 | 12 | 24 |
| TGSG4040 | 40 | 14 | 28 |
| TGSG4545 | 45 | 16 | 32 |
| TGSG5050 | 50 | 17.5 | 35 |
Plastic Biaxial Geogrid Uses:
Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the worldwide.Biaxial Geogrid is Strata’s innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.
| Item | Geogrid Feature |
| 1 | Fast and an all-weather installation solution |
| 2 | construction of cost effective |
| 3 | Ability to reinforce any soil type |
| 4 | Low creep under constant load |
| 5 | Easy to install |
| 6 | High pull out resistance |
SHENZHOU GEOSYNTHETICS make infrastructure more sustainable. They extend the service life of roads, reduce the use of aggregates, conserve and protect water, minimize land disturbance and control soil erosion.
Sustainability is at the heart of what we do.
